Flat Bottom High Performance Carbide End Mills With Blue Nano Coating

Product Categories
ZHUZHOU APPLE CARBIDE TOOLS CO.,LTD.
Contact Now

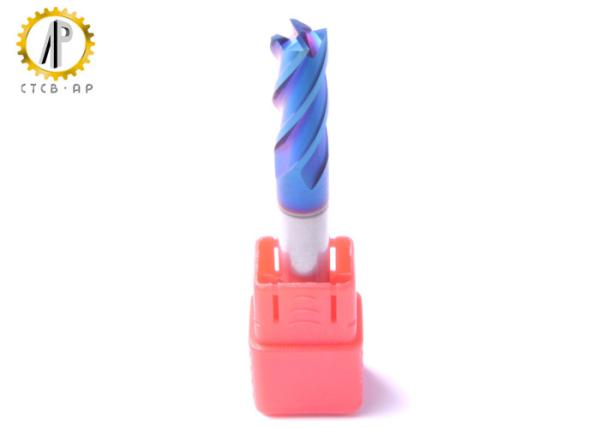

Flat Bottom High Performance Carbide End Mills With Blue Nano Coating

  • 1
  • 2
  • 3

Brand Name : CTCB-AP

Model Number : flattened

Certification : ISO9001

Place of Origin : Hunan,China

Payment Terms : L/C, D/A, D/P, T/T, Western Union,paypal

Supply Ability : 500000 pieces per month

Delivery Time : 5-35 work days

Packaging Details : plastic box packed for each pieces, carton boxes outside

Diameter : 0.3mm~20.0mm

Controlling Mode : CNC tooling system

Overall Length : 38mm~150mm

Usage : hardened Material Milling

Coating : Blue Nano Coating

Helix angle : 30°/35°/38°/45°/55°/

Customization : Acceptable

Machining Type : Side face,Step Shoulder,Straight Slot,Deep Flattened Slot,Profile,Cavity

Contact Now

Carbide Flat End Mills with Blue Nano Coating for high performance Milling

Solid Carbide Flat End Mill is also known as " square end milling cutter or Flattened End Mills".

The corners of these mills are sharp and generate a 90° angle.

Flat End Mills can be general purpose or high perfomance geometries.

They can be used used for plunging, grooving, side milling, face milling, and counter boring.

These are the most popular milling cutters in the industry.

Flat End Mills are available in a wide variety of diameter sizes.

End Tooth Type of Solid Carbide End Mills

4-flute flattened end mills

Machining Operation of Solid Carbide End Mills

Flatttend End Mills for

Side Machining

Flatttend End Mills for

shoulder Machining

Flatttend End Mills for

straight slot Machining

Flatttend End Mills for

deep slot Machining

Catalogue


Specifications		 (mm)
Basic size
flute
shape
D d H L
MKS40100N-D4 3 4 1 50 4 M1
MKS40150N-D4 4 4 1.5 50 4 M1
MKS40200N-D4 6 4 2 50 4 M1
MKS40250N-D4 8 4 2.5 50 4 M1
MKS40300N-D4 8 4 3 50 4 M1
MKS40400N-D4 11 4 4 50 4 M2
MKS40100N 3 6 1 50 4 M1
MKS40150N 4 6 1.5 50 4 M1
MKS40200N 6 6 2 50 4 M1
MKS40250N 8 6 2.5 50 4 M1
MKS40300N 8 6 3 50 4 M1
MKS40400N 11 6 4 50 4 M1
MKS40500N 13 6 5 50 4 M1
MKS40600N 16 6 6 50 4 M2
MKS40700N 20 8 7 60 4 M1
MKS40800N 20 8 8 60 4 M2
MKS40900N 22 10 9 75 4 M1
MKS41000N 25 10 10 75 4 M2
MKS41100N 26 12 11 75 4 M1
MKS41200N 30 12 12 75 4 M2
MKS41400N 32 14 14 75 4 M2
MKS41600N 45 16 16 100 4 M2
MKS41800N 45 18 18 100 4 M2
MKS42000N 45 20 20 100 4 M2
